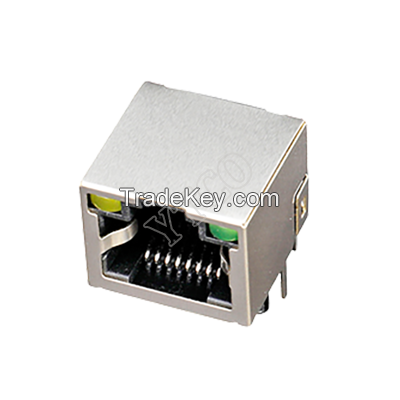

6563 Series RJ45 Network Socket/8P8C/Single/Lighted/Shielded/Shrapnelless

Product Description

Brand/Trademark: YTCO

Model/specification: *******1XXXX1XA*1

Professional connector (connector), connector production and connection solution provider. RJ*5 (Registered Jack *5) is often referred to as an Ethernet interface or network interface. RJ*5 is a type of connector (for example, RJ*1 is also a type of connector, but it is used on telephone); There are two different ways to sort the RJ*5 head according to the line, one is orange white, orange, green white, blue, blue and white, green, brown white, brown; the other is green white, green, orange white, blue, blue and white, orange, brown white, brown; Therefore, there are also two kinds of wires that use RJ*5 connectors, namely: straight line and cross line. RJ*5 type network cable plug is called crystal head, a total of eight cores, widely used in LAN and ADSL broadband Internet users network equipment between network cable (called CAT 5 or twisted pair) connection. The specifications are: full plastic type, semi-wrapped type, full wrapped type with shield, with filter, with light with elastic type, with light without elastic type, conjoined type, with line type, with ear or without ear type. There are **0° plug type, *0 ° plug plate type, S.M.T patch type. Model: RJ*5 *0P8C, RJ*5 8P8C. The product specifications are complete and all are ROHS compliant.

RJ*5 (Registered Jack *5) material and performance parameters:

Terminal material: phosphor copper

Plastic material: 1) ABS RESIN (UL*4V*0) 2) Glass fiber filled PBT (UL*4V*0)

Plastic color: light gray, dark gray, black, white.

Shielding shell material: brass

Terminal plating: tin/gold plating

Shielding case plating: nickel plating

Packing method: blister box packaging

Electrical performance parameters:

Rated current: 1.5AMPS

Rated voltage: **5VAC

Insulation resistance: not less than **0MΩ

Working environment temperature: **0°C**5°C

Compressive strength: AC ***0V *0Hz or *0 Hz

1 minute contact resistance: not more than *0MΩ

Mechanical properties:

Insertion force: 8C**0g *0C***0g

Fitting strength: 7.7Kg between plug and socket

Service life: not less than **0 plugs

Gold-plated wire: 1) 0.*5mm diameter phosphor copper wire nickel plating after gold plating 2) 0.*5mm thick phosphor copper sheet nickel plating after gold plating

Shielding shell: 0.*5mm thick copper alloy surface nickel plating optional gold plating layer thickness: GOLD FLASH 3u inch, 6u inch, *5u inch, *0u inch, *0u inch

Product use: PCB-type connectors for computers, switches, network cards, telephones, routers, optical fiber transceivers and servers and other network communication equipment to provide supporting services.

To learn more about RJ*5 network sockets, please contact us, thank you
