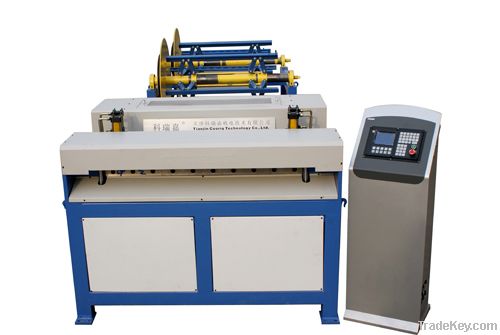

Auto Duct line 2

Product Description

Auto duct line 2 is quite suitable for the manufacture of TDF flange ducts. It can be combined with TDF flange forming machine which is suitable for large-scale production in factory and on-site production also.

Max feeding speed is *2m/min. length tolerance is 0.5mm and diagonal tolerance is 0.8mm.

With the material saving mode and the standard mode, users can reduce the waste of sheet metal significantly to less than *0mm per coiler.

Chinese and English language can be easily converted.

Basic equipments:

A material frame (2 coils; the max loading of each coil is 6 tons)
A transmission frame
A main machine
A CNC System

Functions: UNCOILING-LEVELING AND GROOVING-V-NOTCH AND END-NOTCH-CUTTING SHEETS FOR TDF FLANGE FORMING

Main technical data:

Name of the machine: Auto duct line 2
Model: ADL******0
Thickness of the sheet(mm): 0.**1.2
Max-width of the sheet(mm): ***0
Max-feeding speed(m/min): *2
Coiler Max-weight(kg): ***0
Main power(kw): *0
Weight(kg): ***0

Name of the machine: Auto duct line 2
Model: ADL******0
Thickness of the sheet(mm): 0.**1.2
Max-width of the sheet(mm): ***0
Max-feeding speed(m/min): *2
Coiler Max-weight(kg): ***0
Main power(kw): *1.5
Weight(kg): ***0

ADL**-Super can complete TDF flange forming, cutting sheet metal for angle steel flange and Pittsburgh lock forming. This line can be combined with Duplex TDF flange forming and Pneumatic
folding machine to become a highly efficient linear production line.

Max feeding speed is *2m/min; length tolerance is 0.5mm; diagonal tolerance is 0.8mm.

With material saving mode and standard mode， Chinese and English language can be easily converted.

Super auto duct line 2 can upgrade to auto duct line 4.

Basic Equipments
A material frame (2 coils; the max loading of each coil is 6 tons)
A transmission frame
A main machine
A movable lock forming machine
A CNC System

Super Auto Duct Line 2= Auto Duct Line 2+ Pittsburgh Lock Forming Machine
