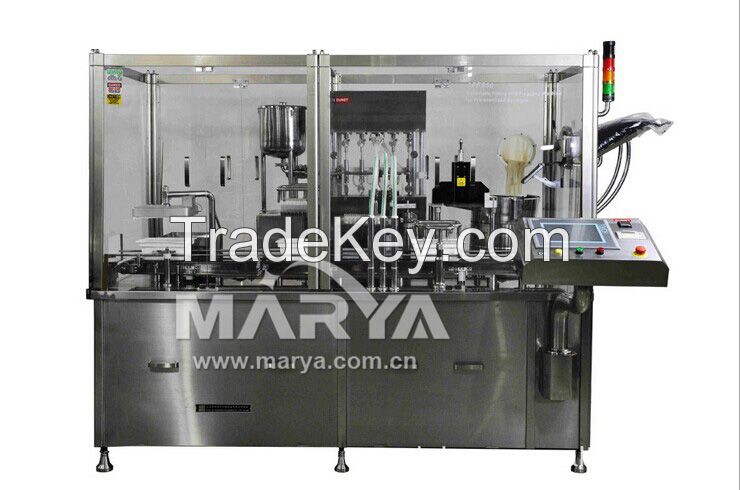

Automatic Filling and plugging Machine for Pre-sterilized Syringes

Product Description

This machine is firstly developed in China ,Features including automatic syringe nest-tubing-feeding,automatic paper-Cover opening/throwing ,automatic vacuum filling ,automatic vacuum plugging and automatic nest-tub out-feeding .Accurate filling ,controlling bubble during plugging.Automatic operation with monitoring all the way ,Beside normal liquid,also suitable for filling transparent thick liquid like ester acid.

This machine is suitable to pre-sterilized syringes(SCF type) made by BD,BG,SCHOTT and major Chinese suppliers ,Custom-designed is optional for other types of syringes.

Five sync filling nozzles ,Four sets of servo motors (YASUKAWA,Japan) for accurate filling ,plugging reliability and accurate row by row moving during filling operation.

SS rotating pumps,Filling volume set-up and accuracy tuning are executed on touch-screen without any tools.

Siemens color touch screen ,Real time monitoring and display of each operating status,vacuum pressure ,nitrogen pressure,C/A pressure,fault alarm with position indication,fault indication and record.Multi-languages display.

Plugging quality is monitored with MVS(machine vision system) to ensure higher acceptability(Option).

Process parameters can be timely printed ,stored and retrievable.

All contact parts are of SUS **6L and medical silicone rubber.Machine is coated with SUS**4 and ***1 Oxidated aluminum alloy.

MAIN CHARACTERISTICS:
* The filling needles enter the syringe barrels without any contact with the container
* Automatic extraction and re-insertion of nest from and into the tub
* Nitrogen Gas Purging Unit
* Vacuum filling system for viscous products to avoid air bubbles
* CIP-SIP systems
* LAF and RABS integration
* Pre-arranged for isolator
* *1 CFR Part *1 compliance


Technical parameter:

Filling Volume:0.**0.5ml,0.**3ml,***0ml,****0ml

Number of Filling Nozzle:5 sets

X travel Distance :**0mm

Printer:Hot-sensible printing paper,width *6mm,max *0 alphabets per line.

Machine Vision system Resolution(Option)  **2***0dpi

Vacuum:*- **8Kpa(***- ***0mm Hg)

Nitrogen 1Kg/cm³, 0.1m³/min 0.*5u

Compressed Air:6Kg/m³, 0.*5m³/min

Power Supply(Including vacuum pump): 3P **0V/**0V ****0Hz 5.5 KW

Dimensions:***0****0****0mm (L*W*H)

Net Weight **0kg
