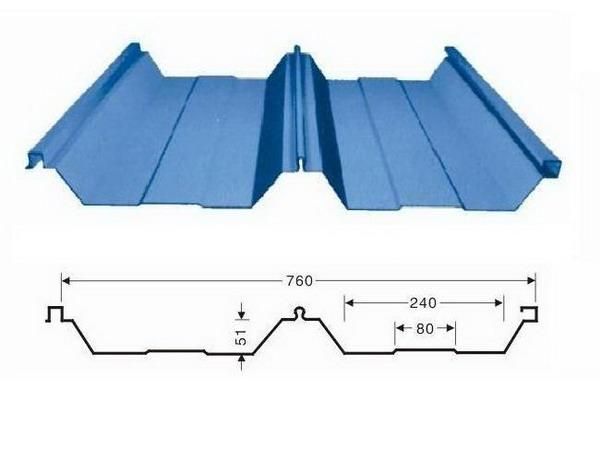

roof panel JCH roll forming machine

FOB Price

Get Latest Price

9000 ~ 20000 USD / Set ( Negotiable )

2 Set Minimum Order

Country:

China

Model No:

840 900 1100

FOB Price:

9000 ~ 20000 USD / Set ( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

Price for Minimum Order:

9000 per Set

Minimum Order Quantity:

2 Set

Packaging Detail:

20 feet container

Delivery Time:

20 days

Supplying Ability:

40 Set per Month

Payment Type:

Product Group :

win-win

Contact Now

Botou Win-win Roll Forming Machinery Co., Ltd

China

Free Member

Contact Person sarah

Shijiazhuang, Hebei

Contact Now

Product Specification

color :required
size:as you request
tile style :choose
price:competitive . make you satisfied
appearance:as your choose . elegant
noise :no noise
payment terms:T/T
use:roof .wall .factory ,exhibition center , civil instruction
spare parts:free

Product Description

Product Description
1.PLC computer control
2.no noise,no shake
3.hydraulic system,long operating
4.easy operation
5.maintenance-free
Introduction

This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system
The machine is stable,no noise,no shake
Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance-free
cutting machine is characterized by stable driving, easy operation
hydraulic system use the CDF**0 hydraulic pump, long operating life,no noise
this machine is applies to roof fortification

Manual decoiler
It is passive type could load coil by expend the blots fix at coil inner diameter. It's easy to operate and economical solution.
Guiding device
Adopt guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming system. Can adjust the guiding bar with loosing the fixing bolts to feed sheet in right position. It's fixed structure to make sure can not move easily.
Roll Forming System:
Roll forming system consist of machine frame, transmission system, electrical motor and roll forming system.
A. Machine frame adopts welding structure with shot blasting and painting treatment
B. All rollers material adopt high quality No. *5 steel, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.
C. All rolling shafts are made by high quality No. *5 steel with quench and temper treatment, so the shafts with good rigidity which could use for long tern without deformation.
D. Rolling shafting supporting structure type is steel wall and welded with the basement together to have rigidity.
E. Cycloidal pin gear speed reducer motor driven, the back/forward roller driven by chain, part of upper/lower rollers driven by gear
F. Adjust the screw bar manually to adjust the distance between upper/lower rollers for difference thickness of sheet.
(Attention: all rolling system has adjusted in our company as a perfect situation, we don't suggest to adjust the rollers at random, if necessary, should adjust by a experienced technician or after train by our engineer. Otherwise will cause the machine can not form a good profile
Cutting device

A. Adopts post cutting, the cutting blade material is Cr*2 with quenched treatment, after cutting, there is no material wasted.
B. Adopts welded frame for good rigidity.
C. The cutting action is droved by the power from hydraulic station which guarantees the procession of the cutting and low noisy, long life.
Hydraulic System
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 3kw
Hydraulic oil: *0#
PLC control system

It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision: within 1.*0mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Touch screen
PLC is Taiwan
Transducer brand is taiwan taida
The seller should provide Chinese and English language screen
Counter
One counter gauges length, pulses, and decides length.

main parameter of roll forming machine
Suitable to process	Steel plate

Width of the plate	*0mm/0mm/**0mm

Rollers	*1rows
Dimensions	5.81.51.1m

Power	4kw*4kw
Thickness of the plate	0.**0.7mm
Productivity	***0m/min
Diameter of the roller	¢*0mm
Weight	About 3.4T

Voltage	*0V 0Hz 3phases

Country:	China
Model No:	840 900 1100
FOB Price:	9000 ~ 20000 / Set ( Negotiable ) (Negotiable) Get Latest Price
Place of Origin:	-
Price for Minimum Order:	9000 per Set
Minimum Order Quantity:	2 Set
Packaging Detail:	20 feet container
Delivery Time:	20 days
Supplying Ability:	40 Set per Month
Payment Type:	-
Product Group :	win-win
