FOB Price
Get Latest Price10 ~ 5000 USD / Set ( Negotiable )
|1 Set Minimum Order
Country:
China
Model No:
ZYZJ DC motor
FOB Price:
10 ~ 5000 USD / Set ( Negotiable ) Get Latest Price
Place of Origin:
china
Price for Minimum Order:
10 per Set
Minimum Order Quantity:
1 Set
Packaging Detail:
wooden case
Delivery Time:
35days
Supplying Ability:
10 Set per Week
Payment Type:
PayPal, Western Union, L/C, T/T
Product Group :
Contact Person Ms. betty
Room 2904A, No. 1027 Changning Rd, Shanghai, Shanghai

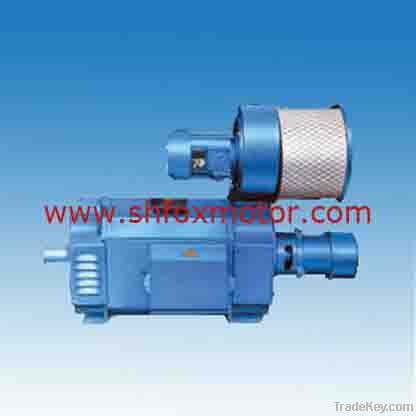

Series ZYZJ DC
motors, developed on the basis of Series Z4 DC motors, are a kind
of serial products for special purpose, which have been made
corresponding improvements in designing and manufacturing
technologies in accordance with characteristics of the roll drives
of sugarcane mills. Adopting multi-angular frame,the motors feature
full utilization of stator space and good compactness of internal
structure. Besides, CAD is used for controlling electrical
parameters in a proper way, the motors are therefore characterized
by smaller volume, lighter weight, lower moment of inertia,
etc.
The motors employ painted lamination yoke structure and other
effective measures for magnetic ciruits, capable of enduring both
current ripple and rapid current changes, and improving commutative
dynamic characteristic. The motors can be lastingly operated from
three-phase bridge without a smoothing reactor. With noval
construction of class F insulation,the motors ensure stable
dielectric performance and excellent heat dissipation.By means of
special insulation treatments,the motors possess fairly good
moistureproof capability and mechanical strength, able to be used
in tropical and humid region. As stators are added with
compensating windings for whole series, the motors boast stronger
overload capacities. The overload capacity at base speed is 2.5
times of rated torque and at high speed 1.8 times of rated current,
lasting 1 minute. Outline and mounting dimensions of the motors
comply with international IEC *2 standard, except for the axial
distance between the mounting holes(dimension B).
| Country: | China |
| Model No: | ZYZJ DC motor |
| FOB Price: | 10 ~ 5000 / Set ( Negotiable ) Get Latest Price |
| Place of Origin: | china |
| Price for Minimum Order: | 10 per Set |
| Minimum Order Quantity: | 1 Set |
| Packaging Detail: | wooden case |
| Delivery Time: | 35days |
| Supplying Ability: | 10 Set per Week |
| Payment Type: | PayPal, Western Union, L/C, T/T |
| Product Group : | DC motor |
