1650 Reel to sheet litho-laminator with stacker intelligent By Yiwu Innovo Printing Machinery Co., Ltd.,

1650 Reel to sheet litho-laminator with stacker intelligent

FOB Price

Get Latest Price

( Negotiable )

1 Set Minimum Order

Country:

China

Model No:

008

FOB Price:

( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

china shanghai

Price for Minimum Order:

Minimum Order Quantity:

1 Set

Packaging Detail:

wooden package

Delivery Time:

45 days after payment

Supplying Ability:

20 Set per Month

Payment Type:

L/C, Western Union, Money Gram

Product Group :

litho laminator

Product Specification

Brand Name: Yiwu Innovo Printing Machinery Co., Ltd.
Packaging Material: Paper
Automatic Grade: Automatic
Application: Machinery & Hardware
Condition: New
Packaging Type: Cartons
Driven Type: Electric

Product Description

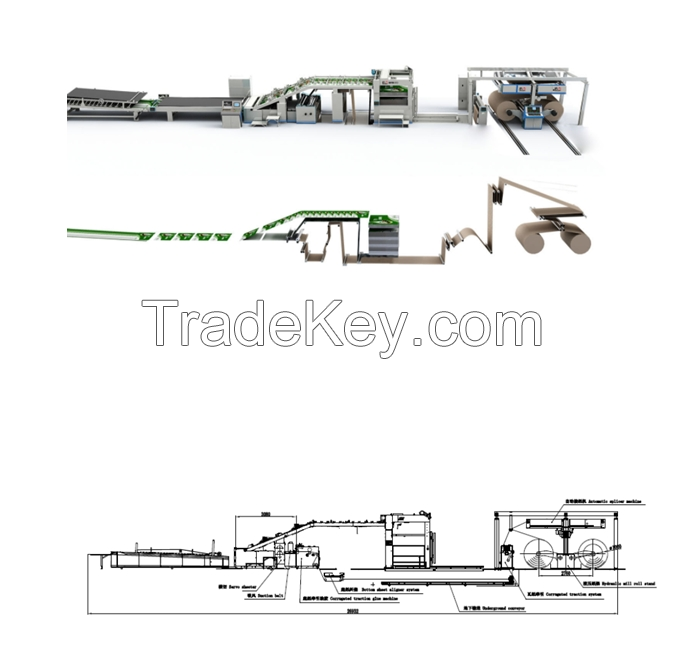

Hydraulic mill roll stand:

The maximum paper roll diameter: 1500mm
The maximum paper roll weight: 4500kg
Strong design, full hydraulic driver, ensure stable and reliable work
Use the expansion chip to prevent damage to the paper core
Pneumatic multi -point brake control paper roll tension is constant
Multi -point brakes

Automatic splicer machine:

Maximum paper join width: 1450mm/1650mm
Maximum rolling paper diameter: 1500mm
Minimum resistance: 3n/mm
Scope of tension control: 10-100kgf
Electrical control part, main control PLC control, low failure rate, high machine stability

Corrugated traction system

Swing roller can automatically adjust the tension of corrugated
The gap between the pressure roller is free to adjust, suitable for different types of corrugated
Driven from the frequency reduction reducer.
Point control the conveying corrugated for convenience to wear paper.

Underground or ground conveyor

It is convenient for the paper head to transport when wearing paper
There are belt running partial devices on both sides of the dynamic roller.

Bottom sheet aligner system

Adopt a high -precision aligner system to ensure the fit accuracy

Corrugated traction glue machine

Use a circulating glue system to reduce glue loss, stabilize glue adhesion effect
Can use white glue or starch glue
Gluing roller: stainless steel material, dynamic balance correction, surface grinding treatment

7. Servo sheeter
Synchronous servo cutting, color marking detection, positioning and tailoring
Imported servo system
Imported spiral blade

Automatic flute laminator

The highest line speed 200m/min
High speed laminating, corrugated does not require secondary positioning
Servo positioning to

Country:	China
Model No:	008
FOB Price:	( Negotiable ) (Negotiable) Get Latest Price
Place of Origin:	china shanghai
Price for Minimum Order:	-
Minimum Order Quantity:	1 Set
Packaging Detail:	wooden package
Delivery Time:	45 days after payment
Supplying Ability:	20 Set per Month
Payment Type:	L/C, Western Union, Money Gram
Product Group :	litho laminator
