2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable 2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable 2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable 2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable 2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable
Next

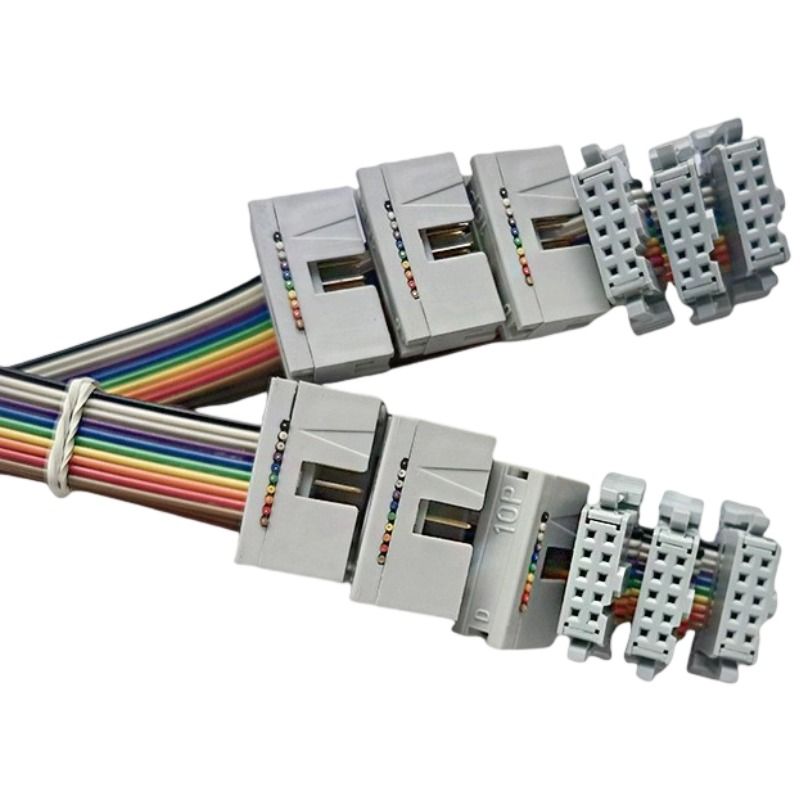

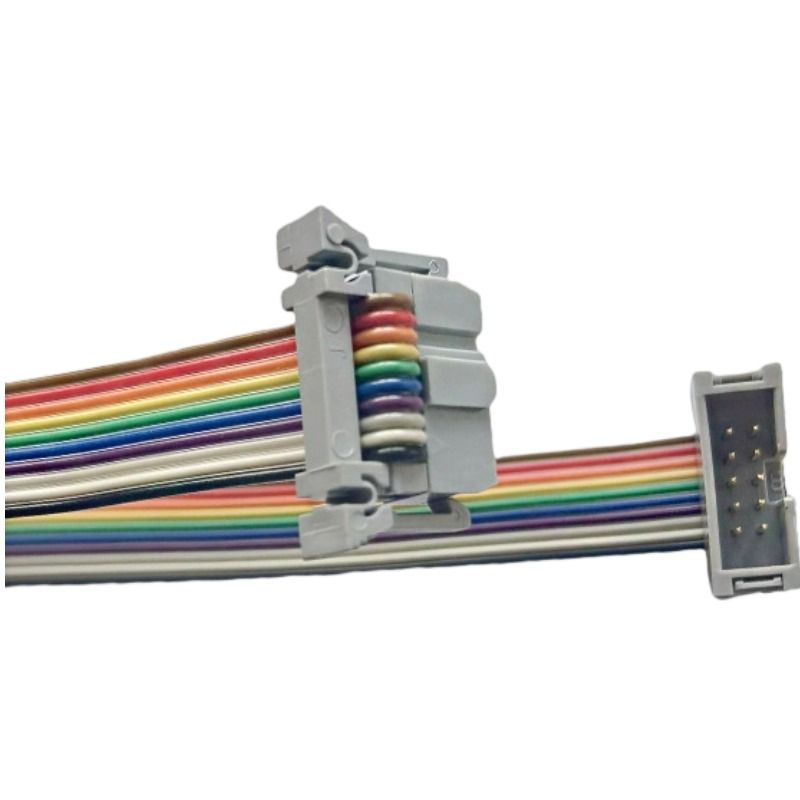

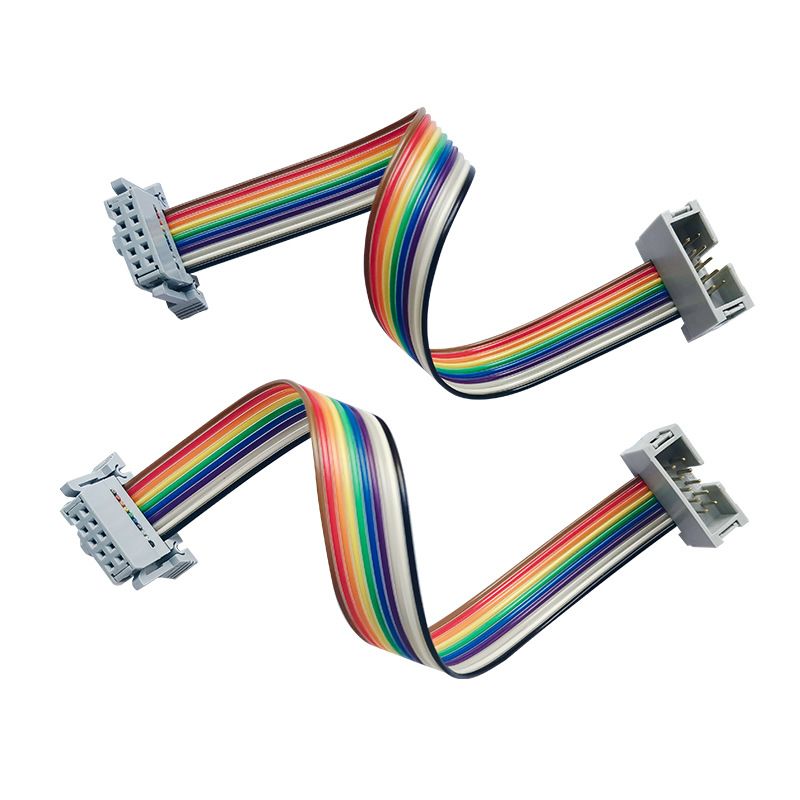

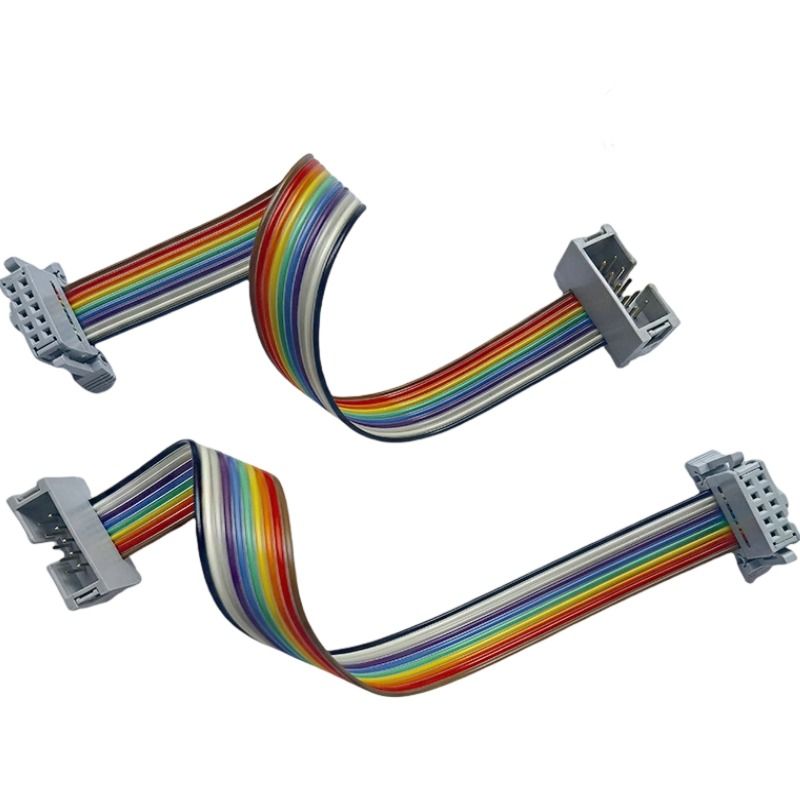

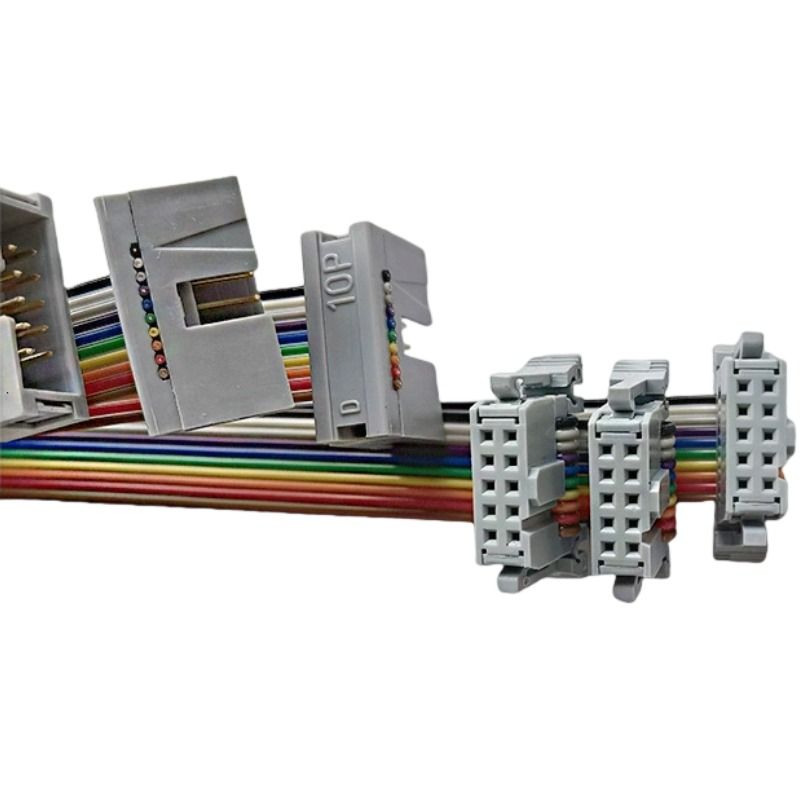

2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable

FOB Price

Get Latest Price

( Negotiable )

|

100 Piece Minimum Order

Country:

China

Model No:

LY6036

FOB Price:

( Negotiable ) Get Latest Price

Place of Origin:

china

Price for Minimum Order:

-

Minimum Order Quantity:

100 Piece

Packaging Detail:

PE bag and carton

Delivery Time:

7-20days

Supplying Ability:

10000 Piece per Day

Payment Type:

T/T, Western Union, PayPal

Product Group :

Computer Accessoires

Contact Now
Karve Electronics Enterprise

Karve Electronics Enterprise

China

3000 Trust Points
1st Year

Contact Person karve-cn.maryzwg.050336

Shenzhen, Guangdong

Contact Now

Product Specification

  • OEM&ODM customized:Warranty one year

Product Description

产品名称：2.54 间距 IDC 彩色带状电缆转换为 10P 简单接头，用于 LED 显示，带状电缆端子连接电缆

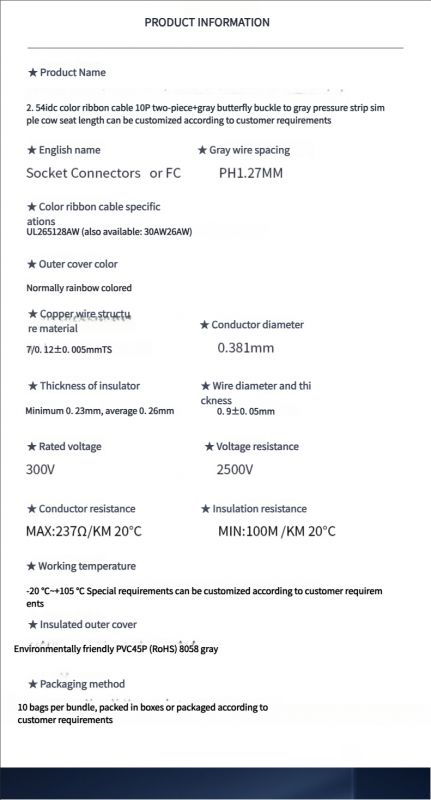

Specification of the dress rehearsal cable: UL2651 28AWG (Also available: 30AWG, 26AWG)
The conventional color of the outer sheath is rainbow color. The material of the copper wire structure: 7/0.12±0.005mmTS
Conductor diameter: 0.381mm
Minimum thickness of the insulator: 0.23mm, average: 0.26mm
Thickness of the wire diameter: 0.9±0.05mm
Rated voltage: 300V
Withstand voltage: 2500V
Conductor resistance: MAX: 237Ω/KM at 20°C
Insulation resistance: MIN: 100MΩ/KM at 20°C
Operating temperature: -20°C~+105°C. Special requirements can be customized according to customers' requests.
绝缘外护套：环保 PVC 45P （RoHS），颜色：8058 灰色

2.54 Spacing Flat Ribbon Cable
IDC Color-coded Flat Ribbon Cable
Simple Header 10P Flat Ribbon Cable
LED Display Flat Ribbon Cable


Country: China
Model No: LY6036
FOB Price: ( Negotiable ) Get Latest Price
Place of Origin: china
Price for Minimum Order: -
Minimum Order Quantity: 100 Piece
Packaging Detail: PE bag and carton
Delivery Time: 7-20days
Supplying Ability: 10000 Piece per Day
Payment Type: T/T, Western Union, PayPal
Product Group : Computer Accessoires
2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable
2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable
2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable
2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable
2.54-spacing IDC Color Ribbon Cable Converted to 10P Simple Header, for LED Display, Ribbon Cable Terminal Connection Cable
