FOB Price
Get Latest Price2.05 ~ 0.85 USD / Pair
|1000 Pair Minimum Order
Country:
China
Model No:
4PN-15/4PP-15
FOB Price:
2.05 ~ 0.85 USD / Pair Get Latest Price
Place of Origin:
China
Price for Minimum Order:
2.05 per Pair
Minimum Order Quantity:
1000 Pair
Packaging Detail:
Standard packing or according to customers request.
Delivery Time:
10-15 working days
Supplying Ability:
10000 Pair per Month
Payment Type:
Other, T/T
Product Group :
Contact Person Mr. bill
Changan, Dongguan, Guangdong

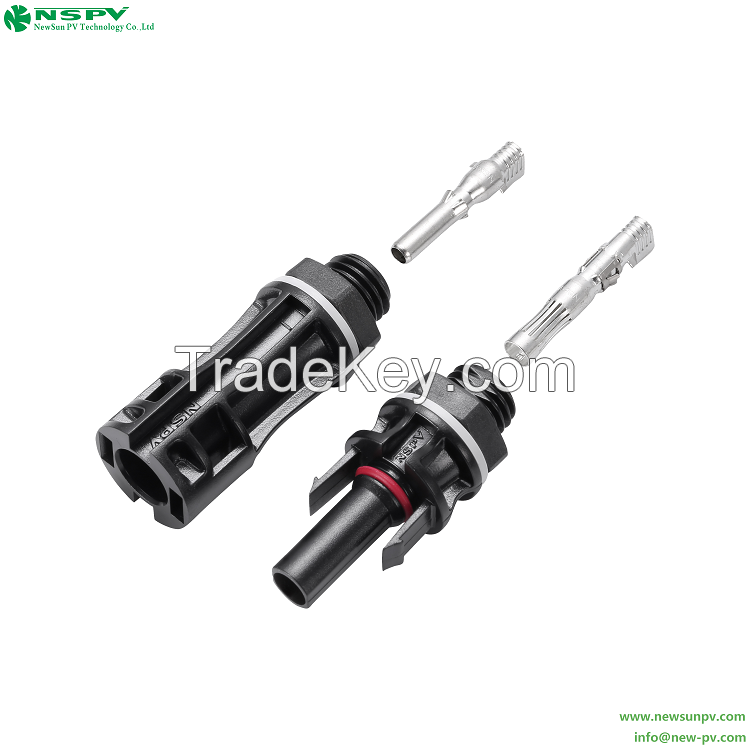

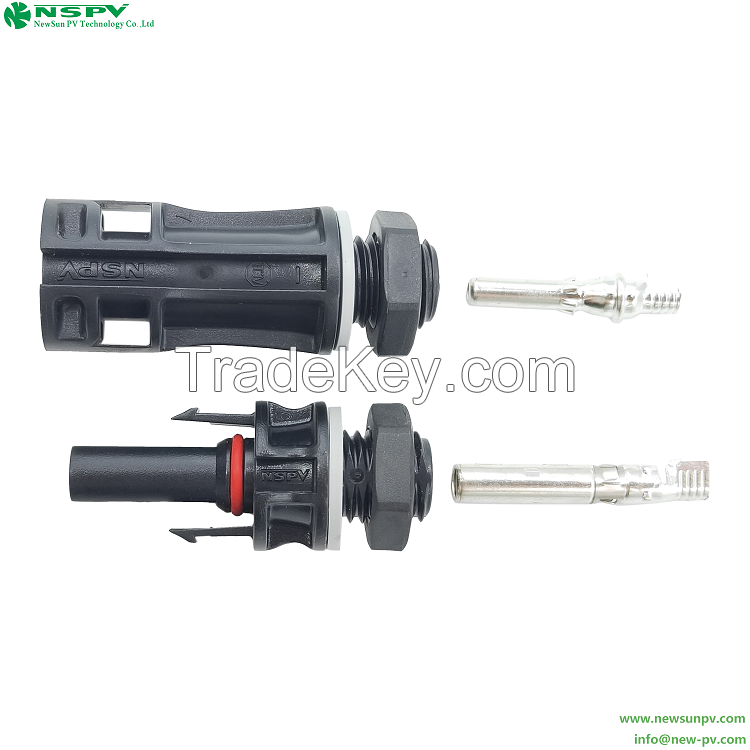

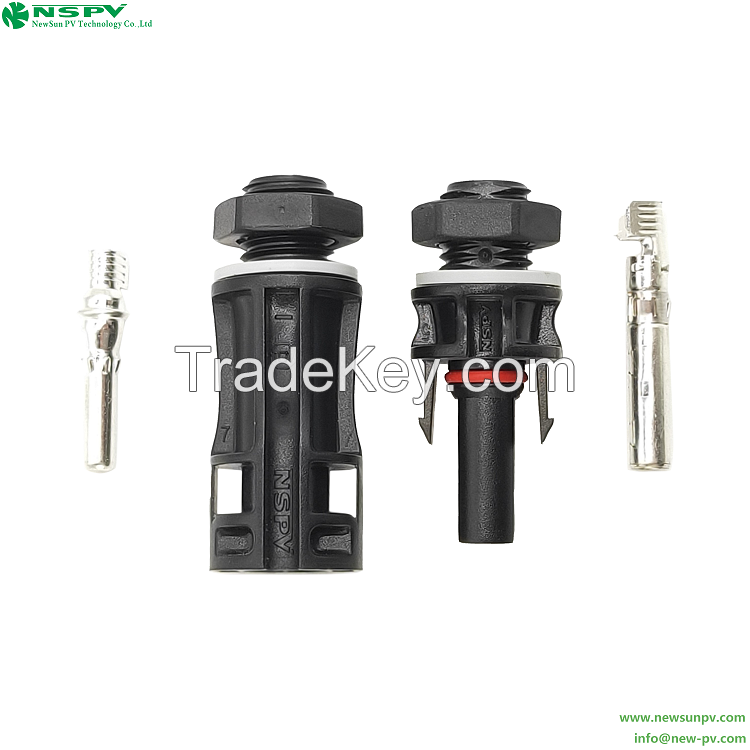

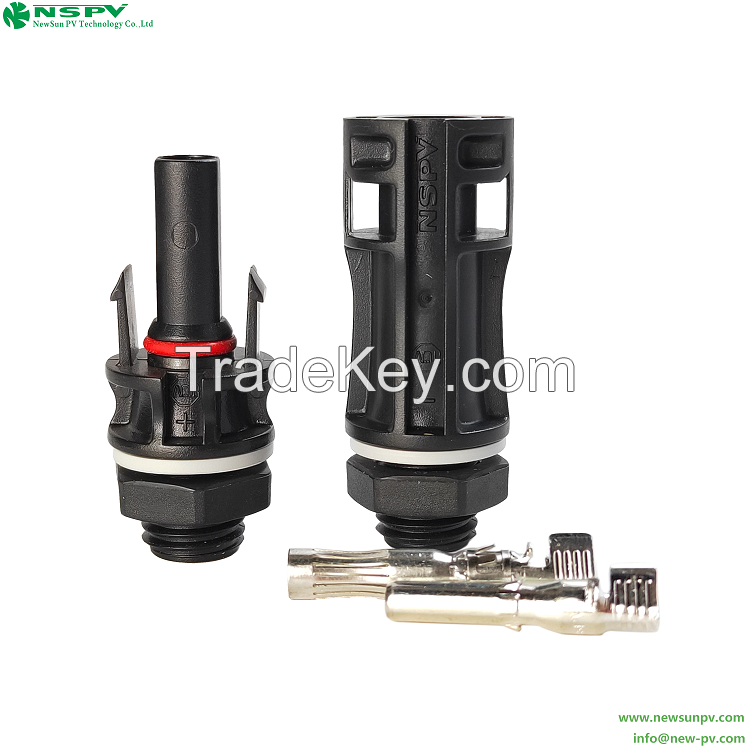

| PV4.0 1500VDC Panel Connector 4PN-15/4PP15 | |||||||||
| Product Specifications | |||||||||
| Insulation material | PPE/PA | Safety degree | II | ||||||
| Rated current | 35A | Flame class | UL94-V0 | ||||||
| Rated voltage | 1500VDC | Ambient temperature range | -40℃…+85℃(IEC) | ||||||
| Test voltage | 8kV(50Hz,Imin) | Suitable cable cross sections | 2.5~6mm2 /14~10AWG | ||||||
| Contact resistance | ≤0.25mΩ | Connecting system | Crimp connection | ||||||
| Contact material | Copper,Tin plated | Nut cap locking force | 0.8-1.0Nm | ||||||
| Degree of protection | IP68(1m,1H) | Upper limiting temperature | 110℃(IEC) | ||||||
| Overvoltage category/Pollution degree | CATIII/2 | Rated Impulse voltage | 16kV | ||||||
| Country: | China |
| Model No: | 4PN-15/4PP-15 |
| FOB Price: | 2.05 ~ 0.85 / Pair Get Latest Price |
| Place of Origin: | China |
| Price for Minimum Order: | 2.05 per Pair |
| Minimum Order Quantity: | 1000 Pair |
| Packaging Detail: | Standard packing or according to customers request. |
| Delivery Time: | 10-15 working days |
| Supplying Ability: | 10000 Pair per Month |
| Payment Type: | Other, T/T |
| Product Group : | Panel connector |
