FOB Price
Get Latest Price10 ~ 90 USD / Piece ( Negotiable )
|1 Piece Minimum Order
Country:
China
Model No:
RSCT-
FOB Price:
10 ~ 90 USD / Piece ( Negotiable ) Get Latest Price
Place of Origin:
China
Price for Minimum Order:
10 per Piece
Minimum Order Quantity:
1 Piece
Packaging Detail:
cartons
Delivery Time:
7-15 days
Supplying Ability:
500 Piece per Day
Payment Type:
L/C, T/T
Product Group :
Contact Person Mr. Jay
No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu

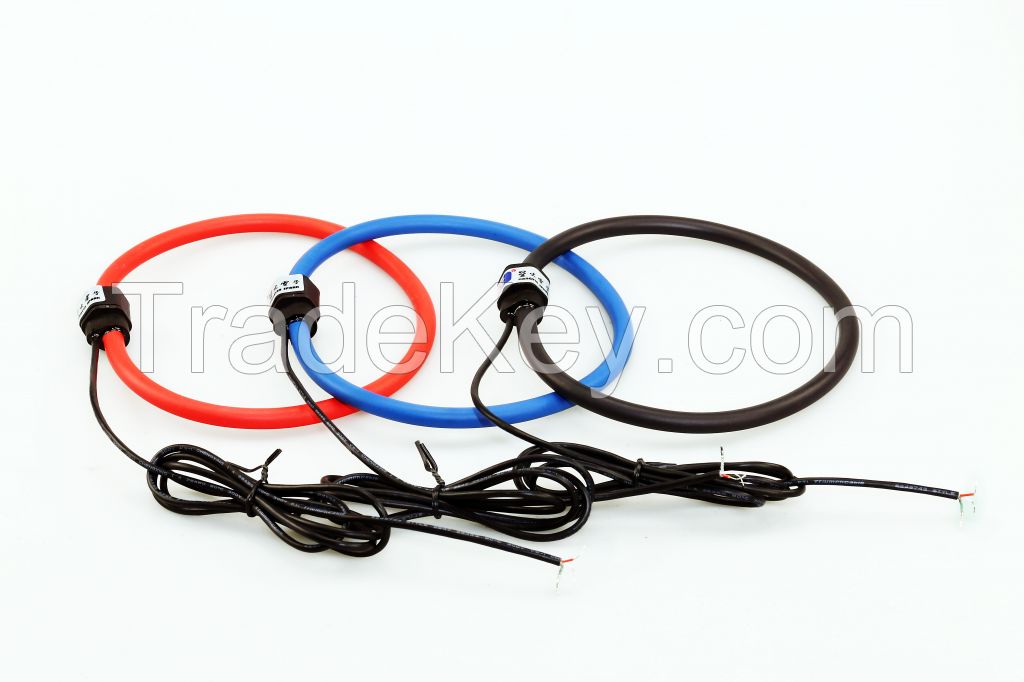

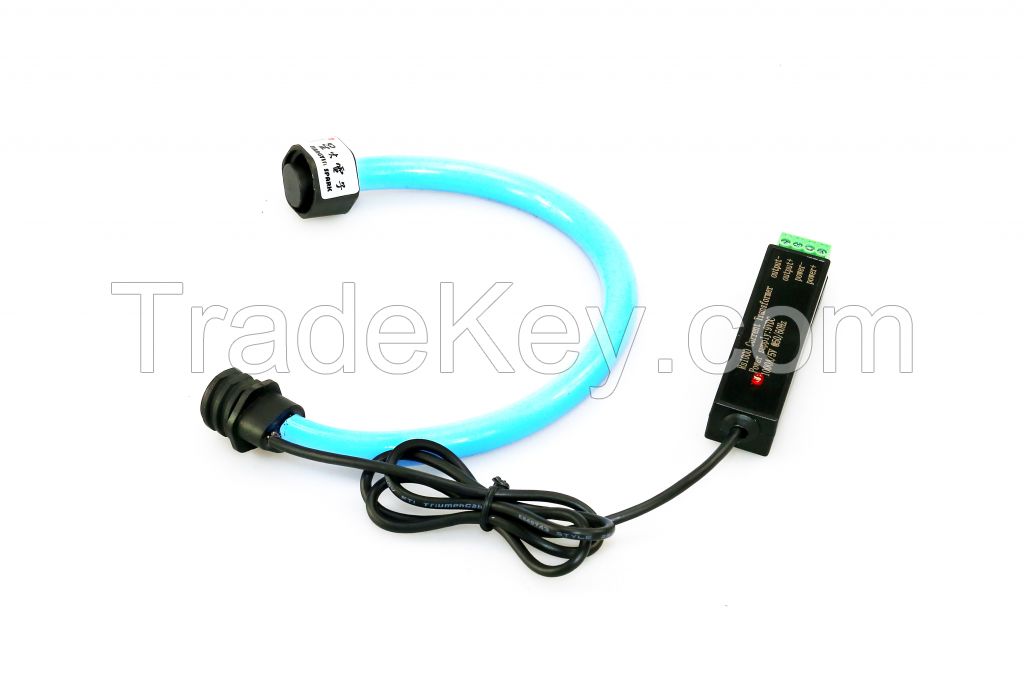

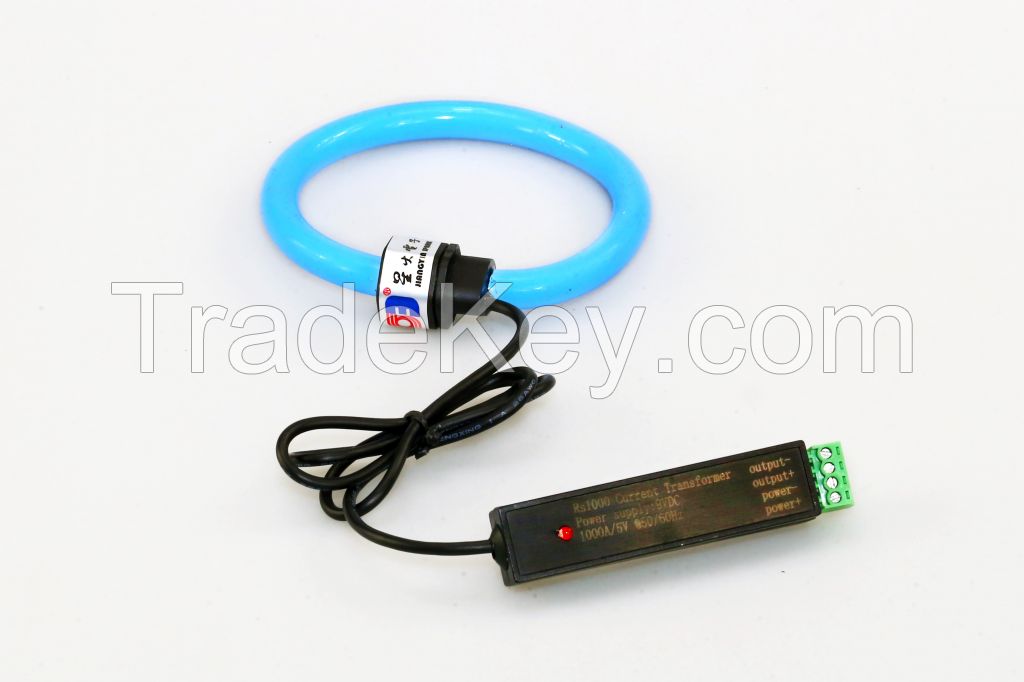

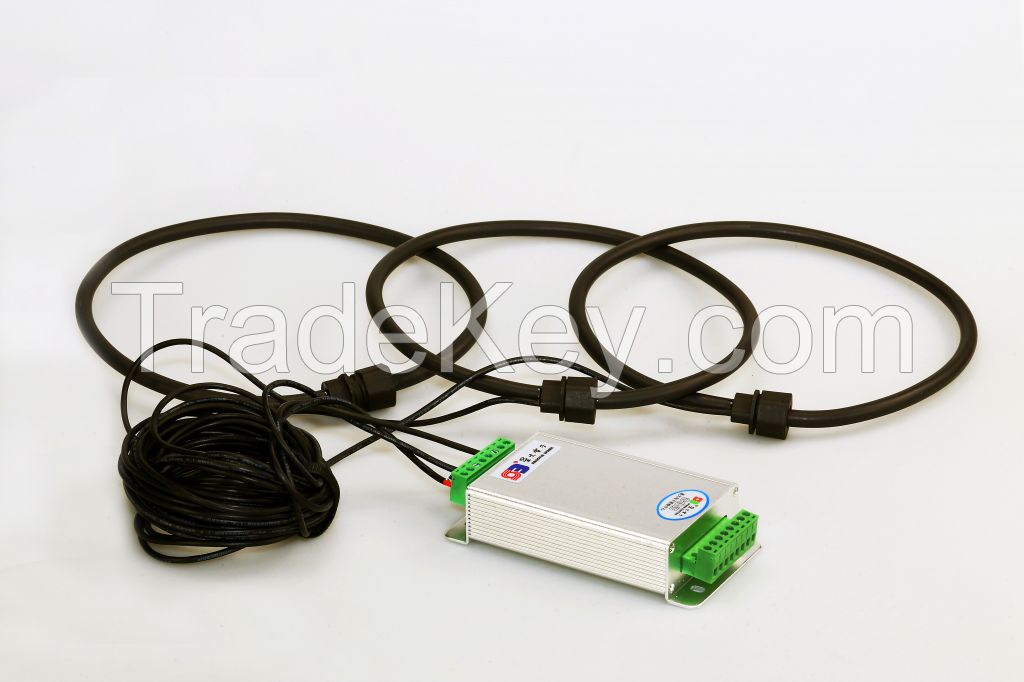

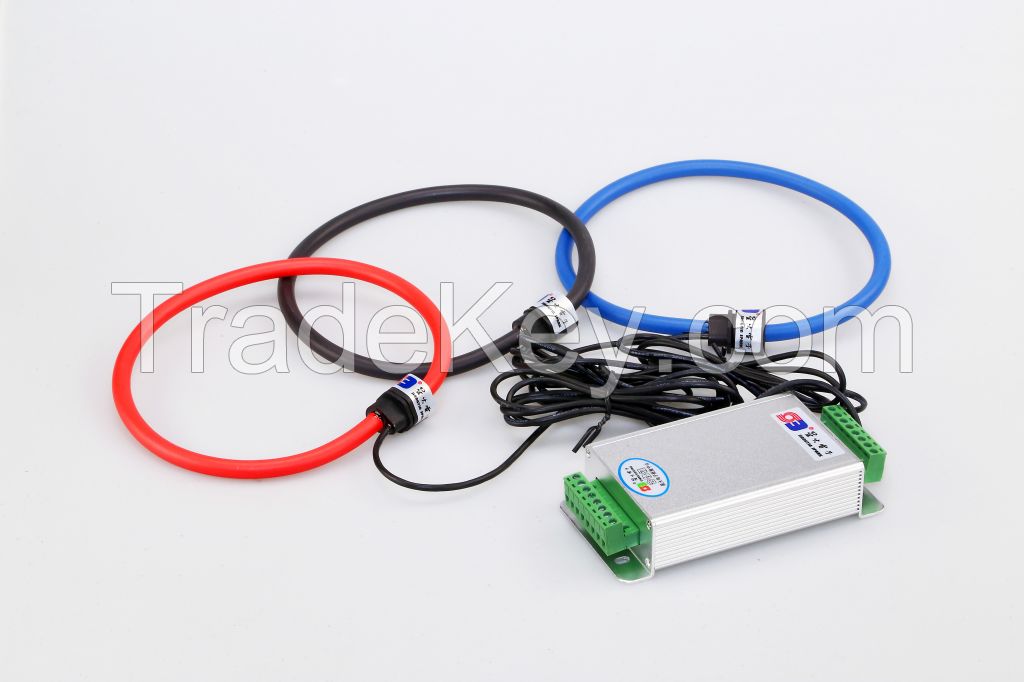

Jiangyin Spark FCT is flexible, like rope ,it is designed to use where solid or split core current transformers cannot fit Advantage including high accuracy, wide measurement and frequency range and very light weight.The probes comprise a flexible air-cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.
Specifications Of 0.333V Flexible Rogowski Coils Current Transformers| Rated current (rms) | 10A-100KA |
| Output | mV (without integrator) |
| 0.333V,0-5V AC(with integrator) | |
| Power supply | 9V,15V,24V DC |
| Coil length | 20cm-200cm |
| Tube | UL material |
| Wire lead | Shielded cable |
| Isolation voltage | 3000V |
| Operating temperature | -25ºC-+70ºC |
| Frequency | 50Hz-60Hz |
| Accuracy | ±1% |
| Country: | China |
| Model No: | RSCT- |
| FOB Price: | 10 ~ 90 / Piece ( Negotiable ) Get Latest Price |
| Place of Origin: | China |
| Price for Minimum Order: | 10 per Piece |
| Minimum Order Quantity: | 1 Piece |
| Packaging Detail: | cartons |
| Delivery Time: | 7-15 days |
| Supplying Ability: | 500 Piece per Day |
| Payment Type: | L/C, T/T |
| Product Group : | Rogowski Coil |
