FOB Price
Get Latest Price10 USD / Piece ( Negotiable )
|1 Piece Minimum Order
Country:
China
Model No:
Xh-Sct-T36
FOB Price:
10 USD / Piece ( Negotiable ) Get Latest Price
Place of Origin:
China
Price for Minimum Order:
10 per Piece
Minimum Order Quantity:
1 Piece
Packaging Detail:
Cartons
Delivery Time:
3-7 days
Supplying Ability:
20000 Piece per Week
Payment Type:
T/T
Product Group :
Contact Person Mr. Jay
No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu
Jiangyin
Spark XH-SCT-T36 Split Core Current Transformer 400A 5A
CT
Maximum
continuous primary current 5A to 1000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV ,mA,A
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 3kV(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated
current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34
mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized

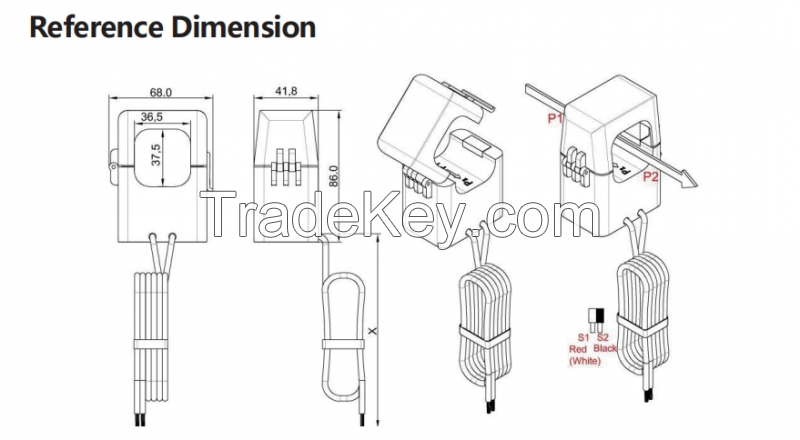

Drawing Size Of
XH-SCT-T36 Split Core Current Transformer Cts 400A
5A

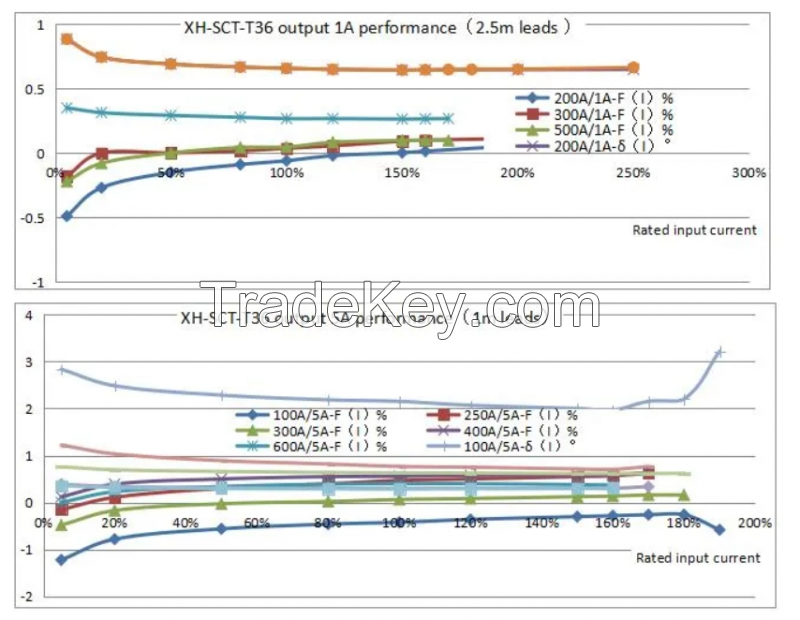

CURVE
PERFORMANCE:
Hot Sales
| Country: | China |
| Model No: | Xh-Sct-T36 |
| FOB Price: | 10 / Piece ( Negotiable ) Get Latest Price |
| Place of Origin: | China |
| Price for Minimum Order: | 10 per Piece |
| Minimum Order Quantity: | 1 Piece |
| Packaging Detail: | Cartons |
| Delivery Time: | 3-7 days |
| Supplying Ability: | 20000 Piece per Week |
| Payment Type: | T/T |
| Product Group : | split core CT/current transformer |
